Guardian® Extended Range Fuel System
(ERFS)
Fixed-Wing Aircraft Fuel Systems
Details

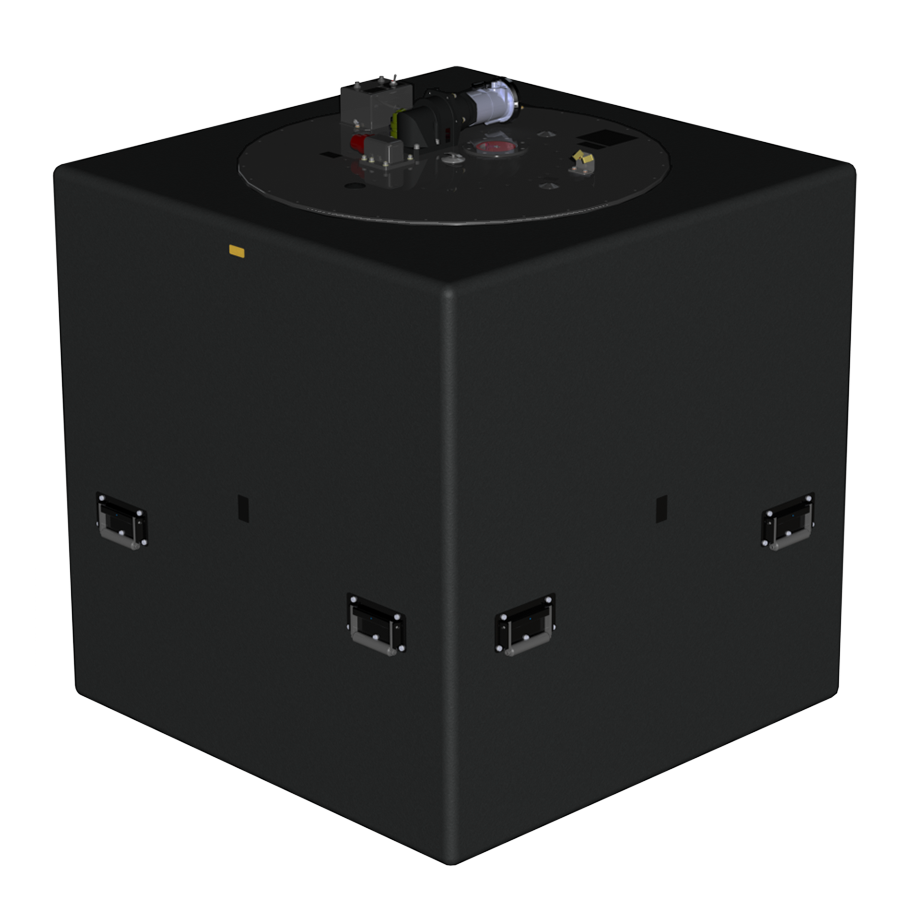

The Guardian 400 Extended Range Fuel System is a fixed-wing auxiliary fuel solution for the Basler BT-67 and potential CASA/IPTN CN-235 and CN-295 installations. Up to two internal tanks may be fitted, with crashworthy and self-sealing construction specified to MIL-DTL-27422. Each tank is designed for installation or removal in approximately 15 minutes and integrates cockpit fuel-quantity indication. Robertson also identifies an optional Rapid Ground Refuelling kit that allows the aircraft to support forward-area fuel delivery roles. Published figures list 375 gallons of average usable fuel and approximately 500 pounds per tank with restraint; aircraft integration must follow the applicable approved configuration.
Key capabilities
- Up to two crashworthy and self-sealing internal tanks
- Approximately 15-minute installation or removal per tank
- Cockpit fuel-quantity indication
- Optional Rapid Ground Refuelling kit for tanker support
- Designed for BT-67 with potential CN-235 and CN-295 installations
Typical applications
Fixed-wing range extension and optional forward-area refuelling support for compatible transport aircraft.
Verified specifications
- Average usable fuel: 375 gal
- Dimensions: 48 × 48 × 56 in
- Weight with restraint: Approximately 500 lb
