Guardian® Extended Range Fuel System
Details

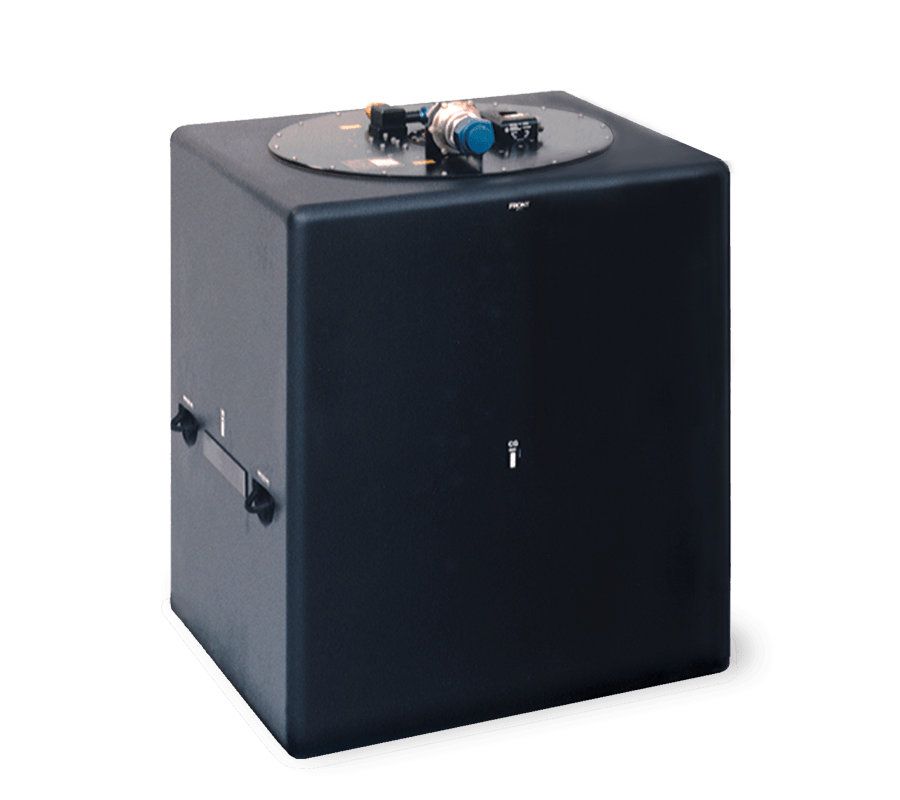

The Guardian 200 Extended Range Fuel System (ERFS) provides auxiliary fuel capacity for the Sikorsky MH-60S Seahawk. Robertson describes a crashworthy, self-sealing installation compliant with MIL-DTL-27422 and capable of accepting up to two tanks. The system includes cockpit fuel-quantity indication so crews can monitor auxiliary fuel during the mission. Installation and removal are designed to take approximately 15 minutes, supporting aircraft reconfiguration between mission profiles. Published data identifies an average usable fuel quantity of 195 gallons and a restrained tank weight of approximately 367 pounds. Platform approval, mission loading and installation details must be confirmed for each aircraft configuration.
Key capabilities
- Crashworthy and self-sealing design to MIL-DTL-27422
- Installation of up to two auxiliary tanks
- Cockpit fuel-quantity indication
- Approximately 15-minute installation and removal
- Designed specifically for the Sikorsky MH-60S Seahawk
Typical applications
Range and endurance extension for compatible MH-60S Seahawk operational profiles.
Verified specifications
- Average usable fuel: 195 gal
- Dimensions: 74 × 20 × 47 in
- Weight with restraint: Approximately 367 lb
